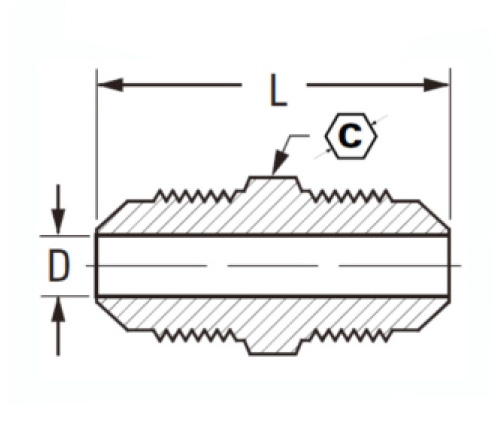

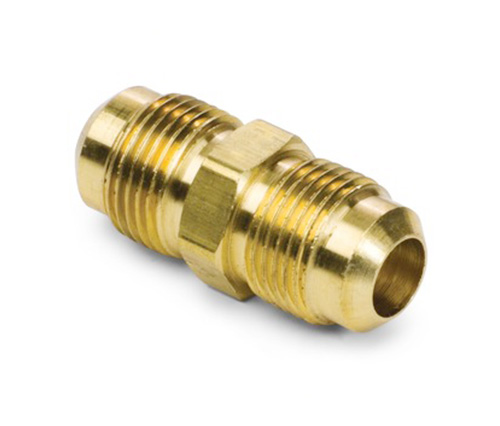

42# SAE 45 ° vzplanutí mosazné kování Flare Union

ČÁST#

TUBE O. D.

C

D

L

42-2

1/8

7/16

.079

.47

42-3

3/16

1/2

.126

.58

42-4

1/4

9/16

.189

.69

42-5

5/16

5/8

.220

.79

42-6

3/8

3/4

.282

.88

42-8

1/2

7/8

.408

1.06

42-10

5/8

1-1/16

.502

1.19

42-12

3/4

1-5/16

.627

1.31

42-5 × 4

5/16 × 1/4

5/8

1.28

42-6 × 4

3/8 × 1/4

3/4

1.38

42-6 × 5

3/8 × 5/16

3/4

1.44

42-8 × 4

1/2 × 1/4

7/8

1.53

42-8 × 6

1/2 × 3/8

7/8

1.69

4210 × 6

5/8 × 3/8

1-1/16

1.88

42-10 × 8

5/8 × 1/2

1-1/16

1.87
